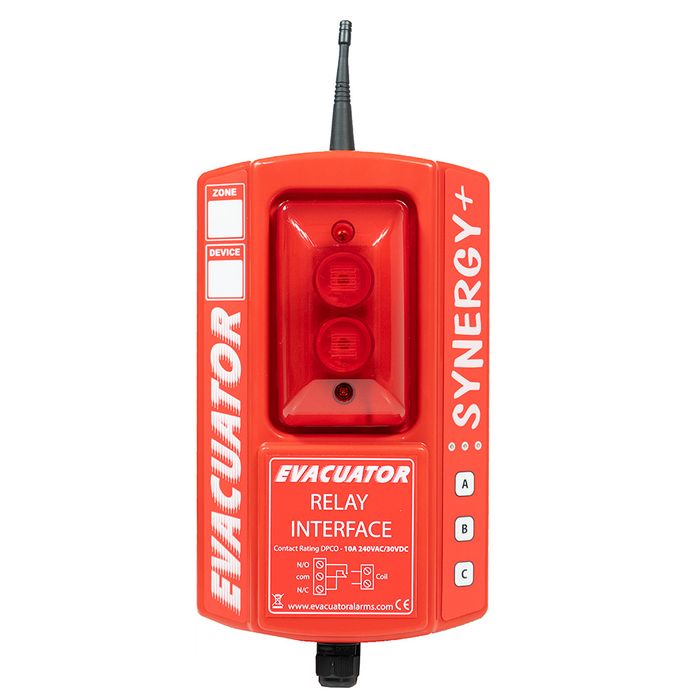

The new Synergy+ Relay Interface is used to trigger other devices using a 869Mhz radio frequency. It can also be used to manage automatically controlled apparatuses in the event of a fire. This is activated when the alarm sounds, it will then close the normally open contact. This output should be used as a zero-volt input. An example usage would be to use it on equipment such as a turnstile to drop power and free run the turnstile in the event of a fire. It features a built-in sounder emitting a 110dB alarm and flashing LED strobe which simultaneously triggers when activated. The device uses a 4.5v battery which can last up to 3 years (depending on usage) but can be powered by mains using our optional mains conversion kit.

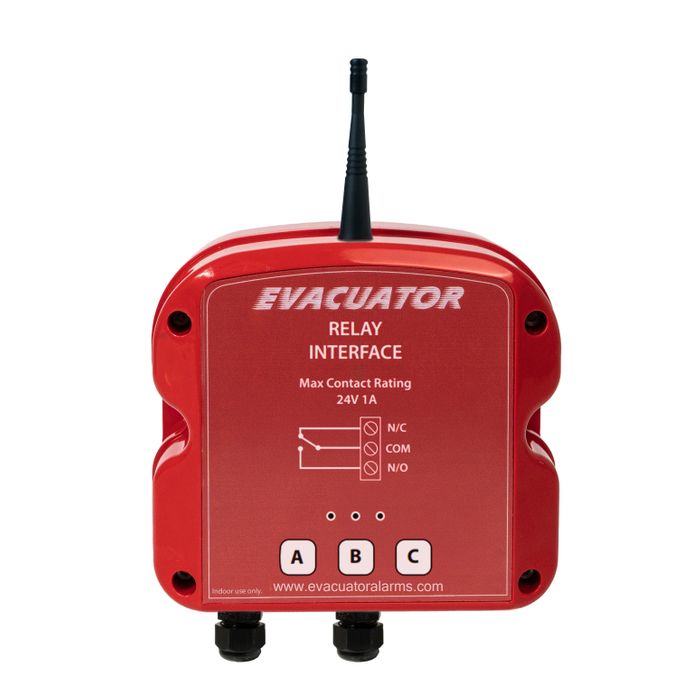

For connecting into Fixed Alarm systems or other temporary Alarm systems please use our Advanced Relay Interface

• Up to 3 years Battery Life
• Category One radio module
• CE, UKCA, ROHS & EMC Compliant
• Battery Low indication
• Status LED
• Totally wire free operation
• Mesh Radio connectivity
• Radio Frequency 869Mhz
• Used to trigger other devices
• Volt Free N/O & N/C contacts.
