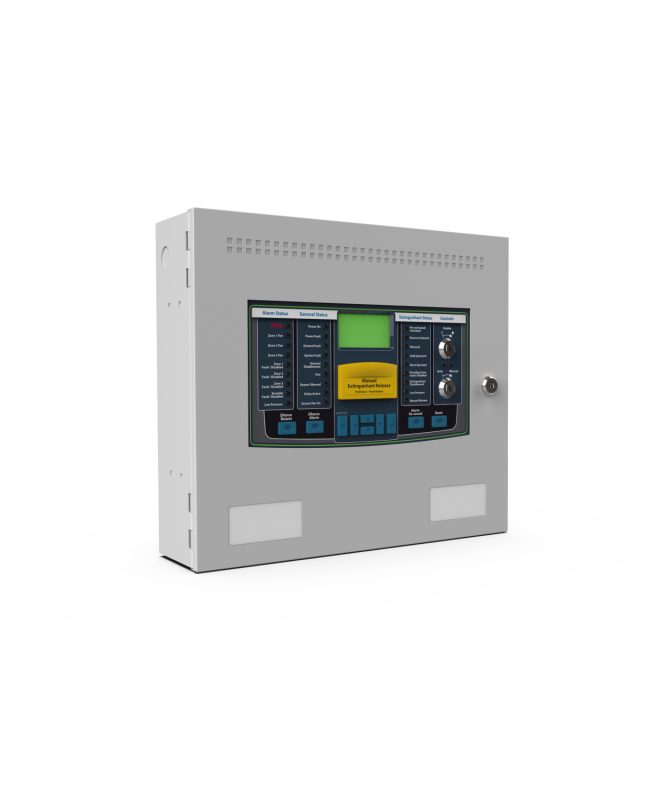

The Sigma ZXT has an event log which records event data from the panel such as alarms, faults, configuration changes etc. along with a time and date stamp. This historical visibility is critical for diagnostics, identifying the cause of alarms and faults, as well as reasons for activations. Up to 1000 events can be stored within the panel which can be viewed through the LCD, or can be downloaded and saved using Kentec’s Loop Explorer 2 software. The system, compliant with EN54-2, EN54-4 & EN12094-1, can also be configured to provide two extinguishing outputs, either working together as common outputs or as main and reserve outputs. The latter results in the connection to two sets of extinguishing gas cylinders, which enables the customer to return a system to a functional state, quickly, following a release. A sophisticated, dynamic LCD, which supplements the LED status indicators, provides detailed information on panel status including fault conditions, alarm conditions and extinguishing release countdown. If dynamic mode is chosen, the display changes colour in relation to the panel status, providing immediate and clear visibility of status conditions. While not in dynamic mode, the LCD will be white regardless of status. To complement the Sigma ZXT there is a range of Sigma ZSi status indicators which match the look of the Sigma ZXT panel fascia. Status units can be located at any access point to the risk area notifying approaching persons of system status, as well as providing optional Auto/Manual key switches and Manual Release push-buttons. Sigma ZXT continues to be backward compatible with Sigma SI status units and ancillary boards allowing easy upgrade of existing Sigma XT installations.
