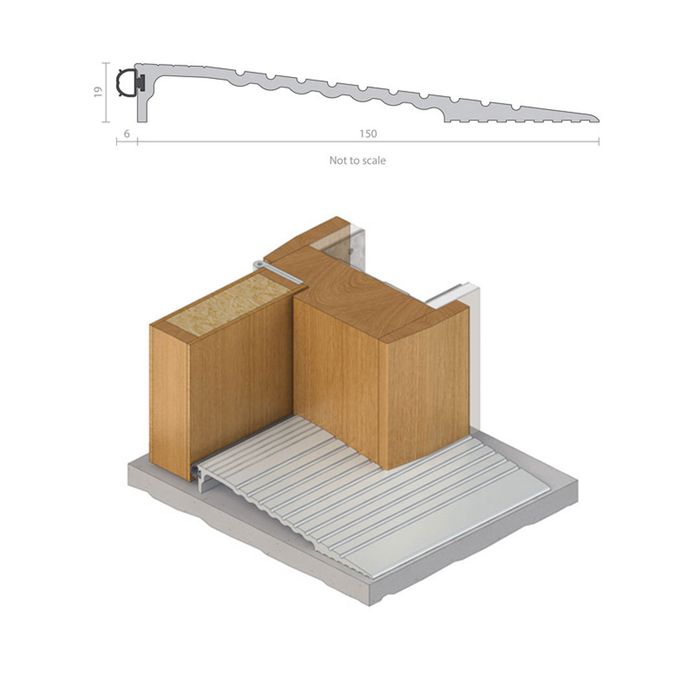

A threshold plate seal particularly suited for outward opening broad butt hinged plant room and emergency exit doors. When used in conjunction with RP93si and RP16si an excellent smoke and acoustic system is achieved. For acoustic applications the void under the RP97si should be filled with sound proof foam or other suitable materials (by others). Specify order length wider than door opening to provide a neat detail at door frame.

Location door seals abutting outward opening broad butt hinged plant or emergency exit doors. Not recommended for pedestrian entry doors.

Min/max compression of seal 0mm/2mm.

Seal Lengths 1000mm only

Standard finish Anodised satin clear.

Fixing method Zinc plated , cross recess head CSK S.T. screws of the appropriate size and colour are supplied, or can be fastened with builders adhesive for concealed fixing (user determined).

Seal material
Silicon rubber (SE) (black).

Replacement seal RP393si.

For data sheets, test reports and more information please copy and paste this link into your browser: https://www.astroflame.com/raven-theshold-seals.html#RP97Si
