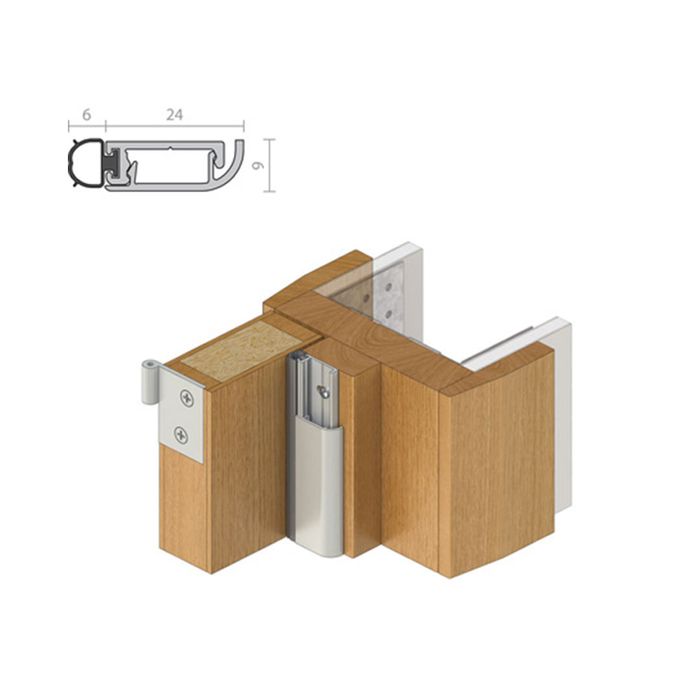

A weather and acoustic seal suitable for plain or rebated frames. RP93Si is quick and easy to install (mitre joint only), to the head and jambs without removing the door. Slotted for installation adjustment, the soft silicon bulb accommodates a tighter seal and, with a tamper proof cover strip, provides a fit and forget feature.

Note:
If fixing to rebated frames of single doors specify a long backset door latch. The tamper proof aluminium cover strip is not recommended for removal once installed, refer RP78Si or RP10Si for this feature.

Location
Head and jambs of single or double broad butt hinged doors.

Min/Max Gap 0mm/ 6mm.

Fixing Method
Zinc plated, cross recess head S.T. screws of the appropriate size are supplied.

Seal Material
Silicon Rubber (charcoal).

Replacement Seal
RP393Si

For data sheets, test reports and more information please copy and paste this link into your browser: https://www.astroflame.com/raven-perimeter-seals.html#RP93Si
