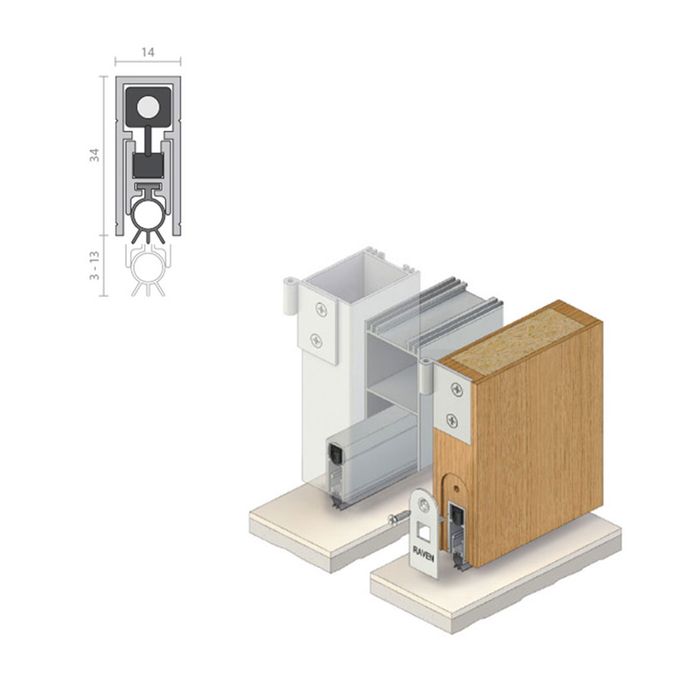

RP8Si is spring loaded to lift clear of the floor as soon as the door leaf is opened by a few millimetres. BS EN ISO 717.1. Mounted into a 15mm x 34mm groove that has been mortised into the bottom edge of the door, it is operated automatically by pressure against the door jamb on its adjusting screw. RP8Si has been tested for durability 1,000,000 cycles completed without failure.

Location
Single and double, butt hinged doors.

Min/Max Gap 3mm/13mm.

Fixing Method
Concealed, with supporting colour matched stainless steel escutcheon plates.
Screws supplied

Seal Material
Silicon rubber (SE) (Charcoal)

Replacement Seal RP308si.

Optional
Stainless steel rounded escutcheon plate RP8cp2(clear) RP8bp2(bronze).

Escutcheon plate dimensions
Rounded: 22mm wide, 57mm high, (22mm dia router bit) 1.2mm thick
Rectangular: 22mm wide, 60mm high, 1.2mm thick.

For data sheets, test reports and more information please copy and paste this link into your browser: https://www.astroflame.com/raven-bottom-seals.html#RP8Si
