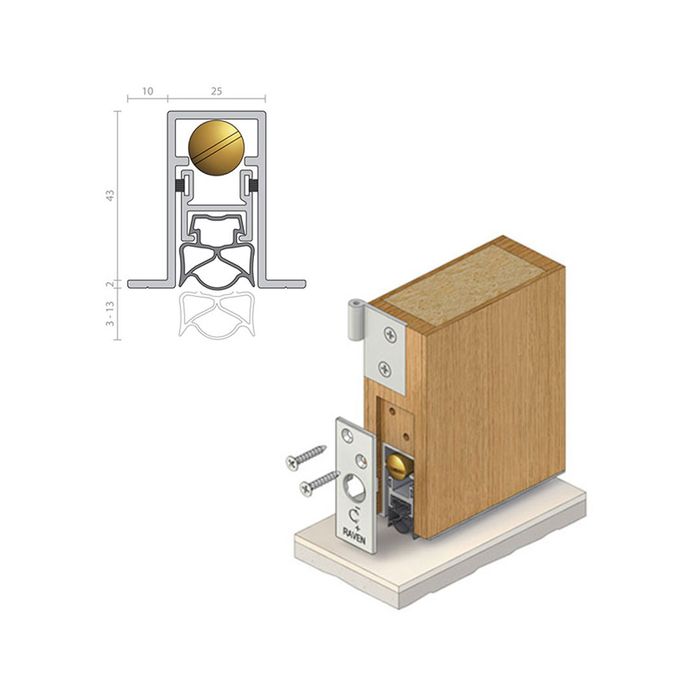

The RP70Si automatic seal is the fully mortised version of the RP38Si door seal. It is a heavy duty door bottom seal which is spring loaded to lift clear of the floor as soon as the door leaf is opened by a few millimetres. The seal is operated automatically by pressure against the door jamb on the adjusting screw. It seals when the door closes and retracts automatically when door is opened. It is self leveling. When using RP70si door bottom seal, the door must be a minimum of 45mm thick and of suitable construction for mortising this seal. It is reversible for left or right handed operation. Note: For double doors, plain meeting stiles are required. RP70Si has been tested for durability ~ 1,000,000 cycles completed without failure.

Location
Single or double, butt hinged doors., minimum thickness 45mm.

Min/Max Gap 3mm to 13mm.

Fixing Method
Fully mortised, can be adjusted, escutcheon plates provided.

Seal Material
Silicon rubber (SE) (charcoal colour)

Replacement Seal
RP338si.

For data sheets, test reports and more information please copy and paste this link into your browser: https://www.astroflame.com/raven-bottom-seals.html#RP70Si
