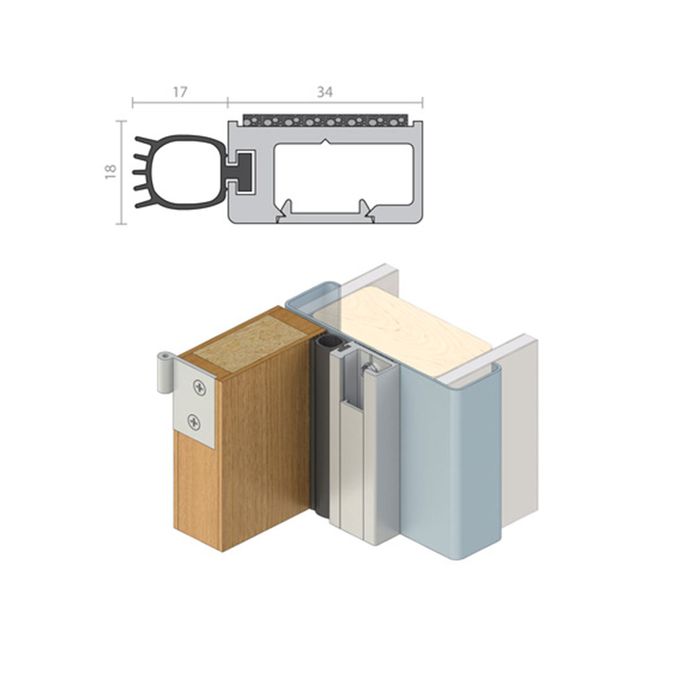

A heavy duty door seal which has been designed to replace the conventional door stop, around the head and jambs of the door frame. Its proven excellent acoustic qualities make it particularly suitable in heavy traffic areas that sustain high abuse, such as hospitals, hotels, airports and prisons

Concealed behind an aluminium cover strip can be found a space for low voltage cable management, along with adjustable fastener slots for achieving perfect fitment. The extrusions of this rugged tamper proof seal can be mitred or butt jointed for ease of installation.

RP47 has been tested acoustically to BS EN ISO 717.1. Note: If fixed to existing rebated frames of single doors, specify a long backset door latch.

Location
Head and jambs of single or double broad butt hinged doors or bulk head applications.

Min/Max Gap 0mm/17mm.

Fixing Method
Zinc plated, Tek self drilling (metal) of the appropriate size are supplied.

Seal Material
T.P.R (black).

Replacement Seal RP347Si.

For data sheets, test reports and more information please copy and paste this link into your browser: https://www.astroflame.com/raven-perimeter-seals.html#RP47Si
