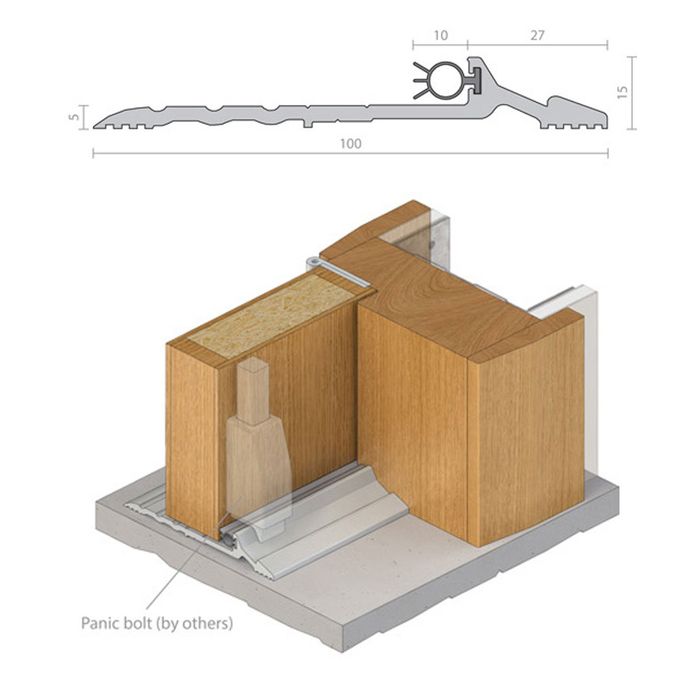

The RP117Si is a weather proof threshold plate seal suited to outward opening broad butt hinged doors. Its ideal for use with a panic type exit device (by others).

Location
Door sills. (broad butt hinged recommended)

Seal Sizes
Available in 1000 and 2000mm stock lengths.

Standard Finish
Anodised Satin Clear.

Fixing Method
Zinc plated, cross recess head CSK S.T. screws of the appropriate size and colour are supplied, or it can be fastened with builders adhesive for concealed fixing.

Used in conjunction
Raven door frame seals and suitable panic type exit devices. (By others)

Seal Material
Silicon Rubber (SE) (charcoal).

Replacement Seal RP308Si.

Approvals
Access & Mobility
UK/EU: Conforms to Approved Document M.

For data sheets, test reports and more information please copy and paste this link into your browser: https://www.astroflame.com/raven-theshold-seals.html#RP117Si
