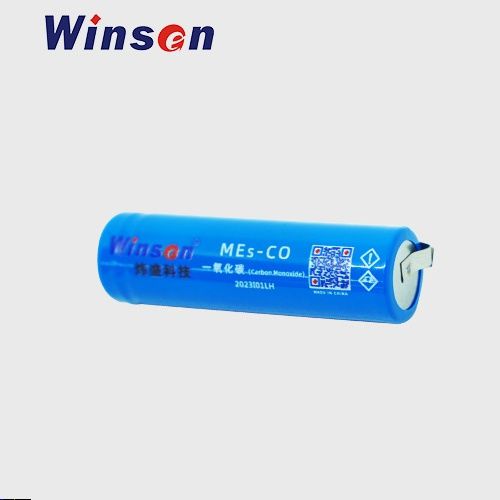

MEs-CO Carbon Monoxide sensor

Zhengzhou Winsen Electronics Technology Stand: 4/C57

Application

Widely suitable for carbon monoxide concentration detection in smart homes, commercial buildings, underground garages, fire monitoring and other fields

Features

  • Low consumption
  • High precision
  • High sensitivity
  • Wide linear range
  • Good anti-interference ability
  • Long lifespan
  • Excellent repeatability and stability

Specifications

Detection gasCO
Measurement Range0~1000ppm
Max detecting concentration2000ppm
Sensitivity(1.0~2.0) nA/ppm
Resolution1ppm
Response time(T90)<30S
Load resistance(recommended)500/1k/2k Ω
Repeatability<3﹪output value
Output Linearitylinear
Zero drift(-20℃~40℃)≤10ppm
Temperaturerange-20℃~80℃
Humidityrange15﹪~90﹪RH
Pressure rangestandard atmosphere±10%
Lifespan10 years

* The description and specifications might be changed without notice. Please contact us for the latest information before placing orders.
