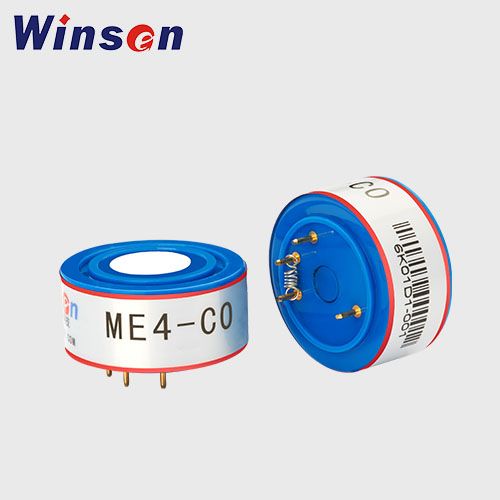

ME4-CO Carbon Monoxide Gas Sensor

Zhengzhou Winsen Electronics Technology Stand: 4/C57

Application

It is used for carbon monoxide detection in industrial occasions such as petroleum and petrochemical occasions, metallurgy, mine and environmental protection.

Features

  • Low consumption
  • High precision
  • High sensitivity
  • Wide linear range
  • Good anti-interference ability
  • Excellent repeatability and stability

Specifications

Detection gasCarbon monoxide (CO)
Detection range0~1000ppm
Max range  1500ppm
Sensitivity  (0.080±0.02) µA/ppm
Resolution  1ppm
Response time (T90)≤25S
Bias voltage0mV
Load resistance (Recommended)10Ω
Repeatability  <2% Output
Output linearityLinear
Stability (/month)<5%
Zero drift (-20℃~40℃)9ppm
Temperature range-20℃~50℃
Humidity range15%~90% RH
Pressure rangeStandard atmospheric pressure ±10%
Life span2 years (in air)

* The description and specifications might be changed without notice. Please contact us for the latest information before placing orders.
