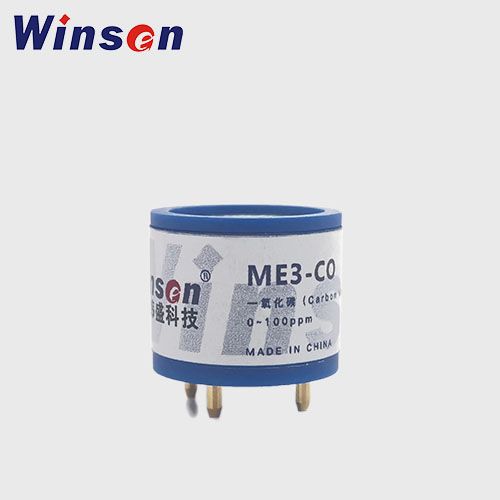

ME3-CO Carbon Monoxide Gas Sensor

Zhengzhou Winsen Electronics Technology Stand: 4/C57

Application

Widely used in industrial and environmental safety fields for the leakage of CO which is one of the toxic/hazardous gases.

Features

  • Low consumption
  • High precision
  • High sensitivity
  • Wide linear range
  • Good anti-interference ability
  • Excellent repeatability and stability

Specifications

ItemParameter
Detection gasCarbon Monoxide (CO)
Measurement range0~1000ppm
Max detecting concentration2000ppm
Sensitivity(0.070±0.015) µA/ppm
Resolution ratio0.5ppm
Response time(T90)<20S
Bias voltage0mV
Load resistance(recommend)10Ω
Repeatability<2% output value
Stability(/month)<5%
Output linearityLinear
Zero drift(-20℃~40℃)≤10ppm
Storage temperature-20℃~50℃
Storage humidity15%~90% RH
Pressure rangeStandard atmospheric pressure ±10﹪
Anticipated using life3 years (in air)

* The description and specifications might be changed without notice. Please contact us for the latest information before placing orders.
