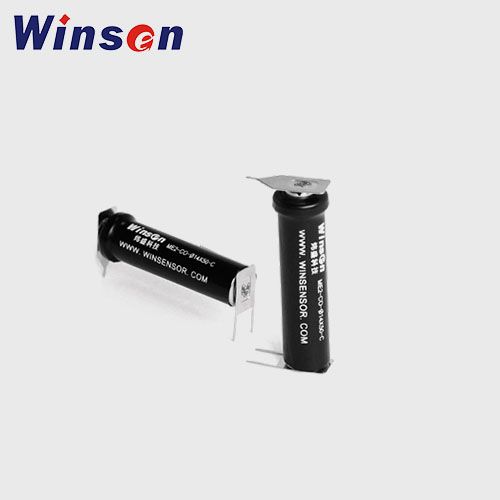

ME2-CO-Ф14x50-C Carbon Monoxide Sensor

Zhengzhou Winsen Electronics Technology Stand: 4/C57

Application

Widely used in commercial and residential occasion to detect CO concentration.

Features

  • Low consumption
  • High precision
  • High sensitivity
  • Wide linear range
  • Good anti-interference ability
  • Excellent repeatability and stability

Specifications

Detection gasCO
Measurement Range0~1000ppm
Max detecting concentration2000ppm
Sensitivity(1~3)nA/ppm
Resolution ratio1ppm
Response time(T90)≤30S
Load resistance(recommended)1000Ω
Repeatability<3﹪output value
Output Linearitylinear
Zero drift(-20℃~40℃)≤10ppm
Storage temperature-20℃~50℃
Storage Humidity15﹪~90﹪RH
Pressure range(kPa)90-110% standard atmosphere
Anticipated using life5 years

* The description and specifications might be changed without notice. Please contact us for the latest information before placing orders.
