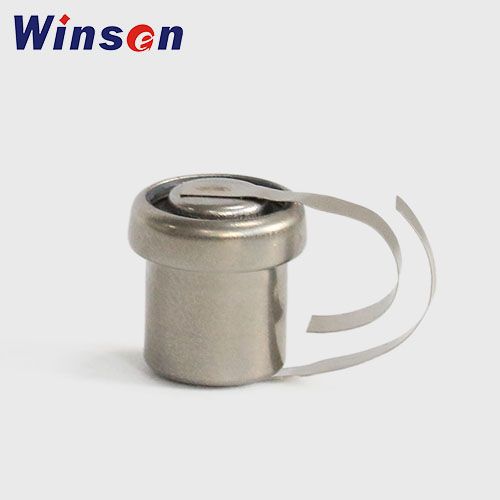

ME2-CO-Ф14x14 Carbon Monoxide Gas Sensor

Zhengzhou Winsen Electronics Technology Stand: 4/C57

Application

Widely used in commercial and civilian area to detect CO concentration.

Features

  • Low consumption
  • High precision
  • High sensitivity
  • Wide linear range
  • Good anti-interference ability
  • Excellent repeatability and stability

Specifications

ItemParameter
Detection gasCarbon Monoxide (CO)
Measurement Range0~1000ppm
Max detecting concentration2000ppm
Sensitivity>0.8nA/ppm
Resolution ratio1ppm
Response time(T90)<30S
Load resistance(recommended)500/1k/2k Ω
Repeatability<3% output value
Output Linearitylinear
Zero drift(-20℃~40℃)≤10ppm
Temperature Range-20℃~50℃
Humidity Range15%~90%RH
Pressure rangeNormal atmosphere±10%
Anticipated using life3 years

* The description and specifications might be changed without notice. Please contact us for the latest information before placing orders.
