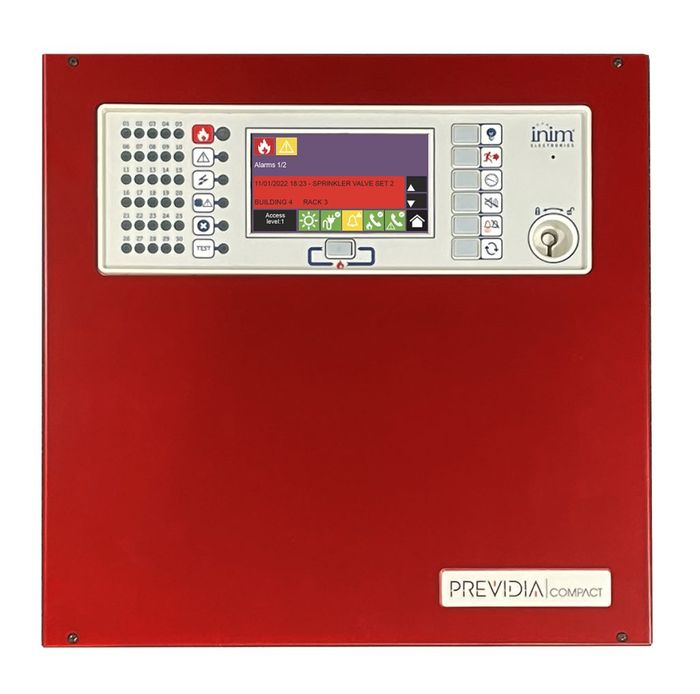

Inim Compact analogue-addressable control panel, Red, designed to support as a standalone or integrated system, Gas Extinguishing, Fire Alarm, Gas Detection and Fire Sprinkler Systems, Capable of managing 2 loops of 240 points. Supports graphical maps and ONVIF cameras as standard. Terminals as standard for the HORNET+ network connection with other control panels. On-board Ethernet connection for remote management, or connection to BMS monitoring software, MODBUS, BACNET protocol over TCP-IP available.

Technical specification: Compact analogue-addressable control panel, capable of managing 2 loops of 240 points.
Multiprotocol, manages Inim, Apollo and Argus security protocols on the loop.
4 A integrated power supply.
Integrated battery charger of 17 Ah.
Sturdy metal cabinet with frontplate in plastic.
Terminals for the HORNET+ network connection with other control panels or remote keypads integrated on board.
On-board Ethernet connection for remote management, networking between control panels or connection to BMS monitoring software, MODBUS protocol over TCP-IP available.
USB port for the configuration.
Management of a micro SD card for the display of topographic maps, saving and retrieving of configurations, storing of the events log.
4 on-board I/O channels configurable as 1 A supervised power outputs, supervised inputs.
On-board configurable relay.
4.3” colour LCD graphic touchscreen
Silicone function keys for basic functions.
30 multicoloured LEDs included for signalling the status of the 30 zones, or configurable.
Management of a gas-extinguishing channel certified EN12094-1.
Programmable from the frontplate or via the Previdia/STUDIO configuration software available on the Inim website.
1000 configurable zones.
1000 groups of outputs for activation logics.
Logical equations for the definition of the most complex activation conditions.
Timers for the timed management of activations, bypass operations, etc.
Log for the last 2000 event.
Manages up to 100 access codes.
Customizable display with images, icons indicating the status of the various elements, text and function buttons.
Management of evacuation matrices.
