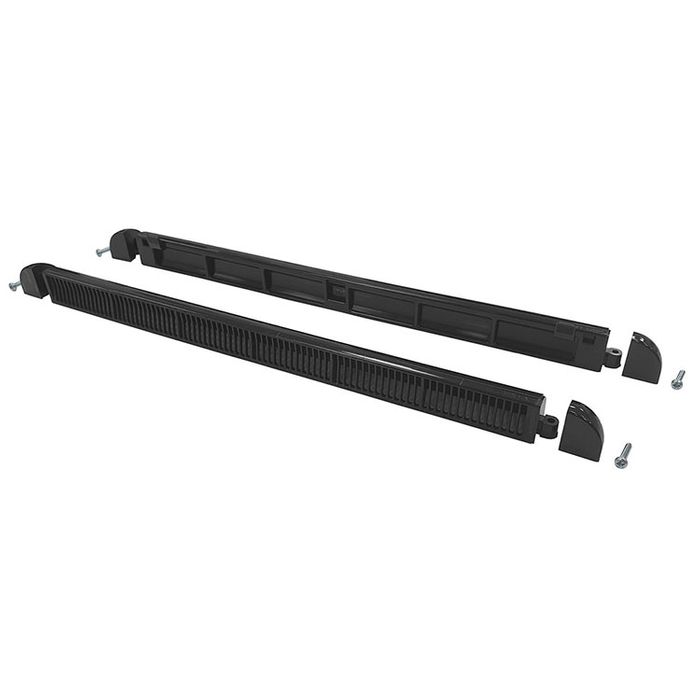

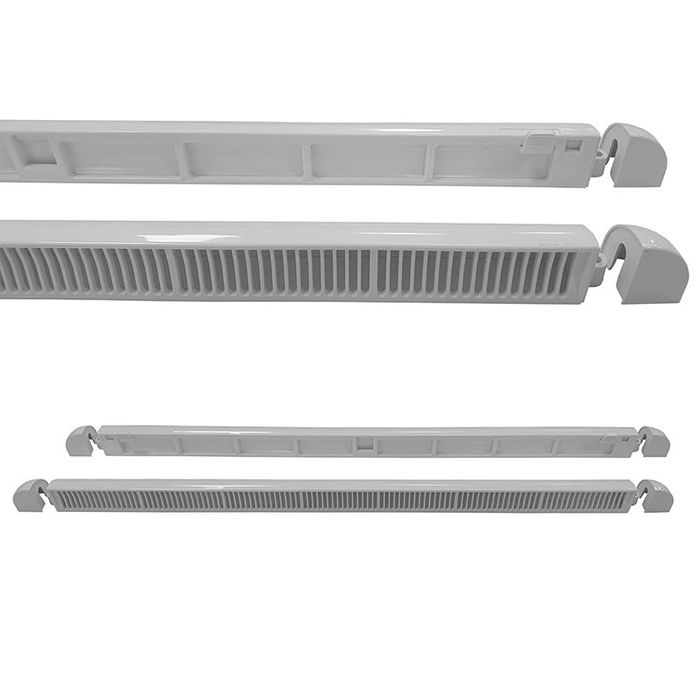

Framevent Hi-Flow Plus Ventilators - Trickle Vent

Astro Flame Fireseals Stand: 4/L25

Manufactured in the highest quality U.V Stabilised PVCu, the Framevent Hi-Flow Plus have been specifically designed to make it easy to achieve the requirements of Approved Document F 2021 whilst still maintaining the smooth, rounded aesthetic synonymous of the Framevent range. The Framevent Hi-Flow Plus achieves 5,205mm2 EA on a length of only 525mm.

Fixing Instructions

  • Route out the Frame with the correct slot size & configuration for the model to be fitted
  • Place unit centrally over the slots.
  • Fix unit in place by using screws provided.
  • Screw hole centres are 20mm in from each end (40mm off the overall length).

Performance

  • Independently tested to BS EN 13141-1:2019.
  • Water tightness of 400pa.
  • Independently acoustically tested in accordance with BS EN 20140-10:2016, ISO 140-10:2010.

Maintenance

  • The Framevent Hi-Flow Plus can be cleaned using a damp cloth. The external hood should be brushed lightly to remove dust from the flyscreen area.
  • *Airflow rates quoted are for when fitted in accordance with manufacturer’s instructions. We recommend silicone sealing vents for best results*.

Product Information

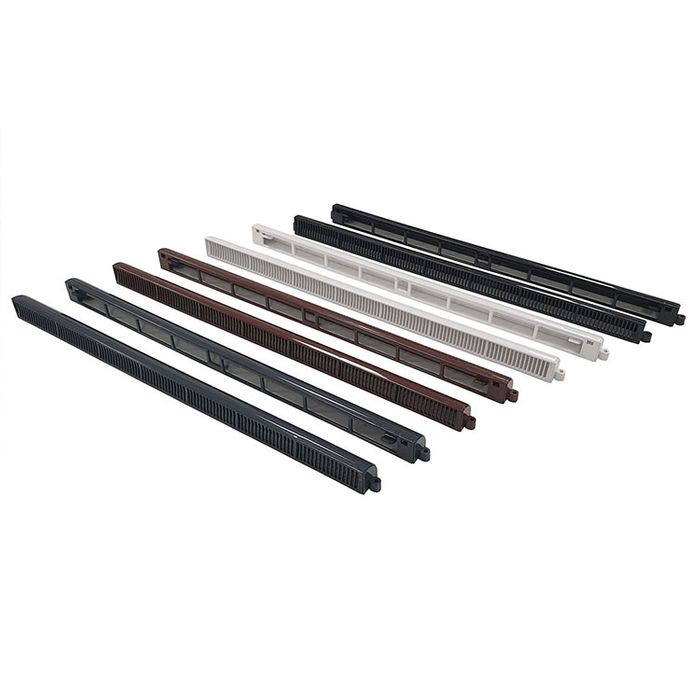

  • Available in White, Brown, Black and Anthracite Grey measurement of Framevent Hi-Flow Plus seen below:
  • 525mm Length x 28mm wide. Equivalent area as per BS 13141-1:2019 – 5205mm2.
  • Slot Size – 2 x (230x13mm) + (10mm land).

For data sheets, test reports and more information please copy and paste this link into your browser: https://www.astroflame.com/framevent-hi-flow-plus-ventilators.html
