FR Graphite
)
)
)
Protecta FR Graphite
High-performance intumescent sealant for complex service penetrations
Protecta FR Graphite is a fire-rated, graphite-based sealant designed for service penetrations where standard fire-stop sealants are not sufficient. It is particularly effective for sealing plastic pipes and other combustible services in small openings where high expansion is required to maintain fire compartmentation.
The product is suitable for openings between 10–30 mm and is widely specified in projects with demanding fire performance requirements, including BREEAM-certified buildings.
Key performance benefits
- Classified for use in most wall and floor constructions
- Suitable for cables, conduits, plastic pipes and insulated steel pipes
- Approved for openings from 10–30 mm, achieving fire resistance up to EI 240
- Water-based formulation with low emissions, supporting safer and more sustainable construction
In fire conditions, the graphite-based formulation rapidly intumesces at temperatures above 150 °C, expanding to close gaps and prevent the spread of fire, smoke and toxic gases. Depending on the application and installation detail, FR Graphite provides up to 4 hours of documented fire resistance.
Typical applications

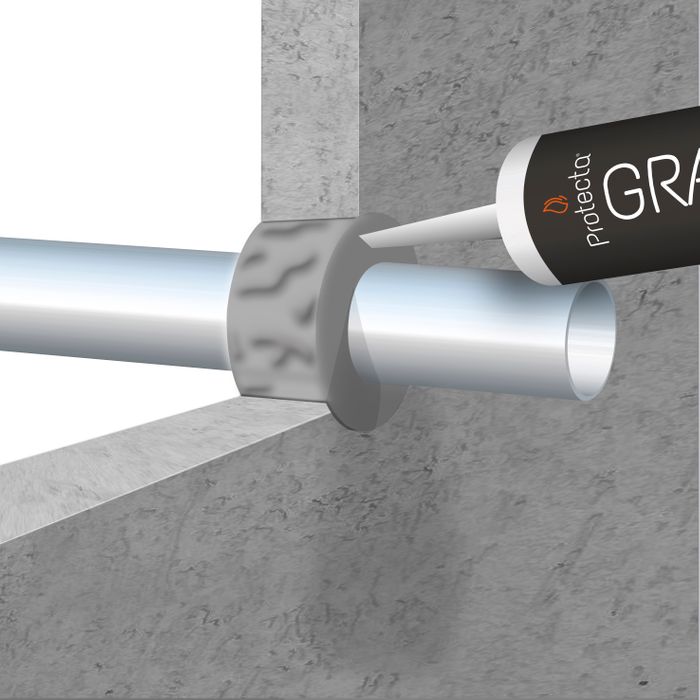

- Sealing around plastic pipes and other combustible service penetrations
- Fire stopping in walls and floors with high fire-resistance requirements
- Installations where significant expansion is required to achieve an effective fire seal
FR Graphite is installed in conjunction with a suitable backing material to achieve the correct joint dimensions and minimise shrinkage during curing. Full installation guidance and verified fire classification documents are available to support correct specification and installation.
