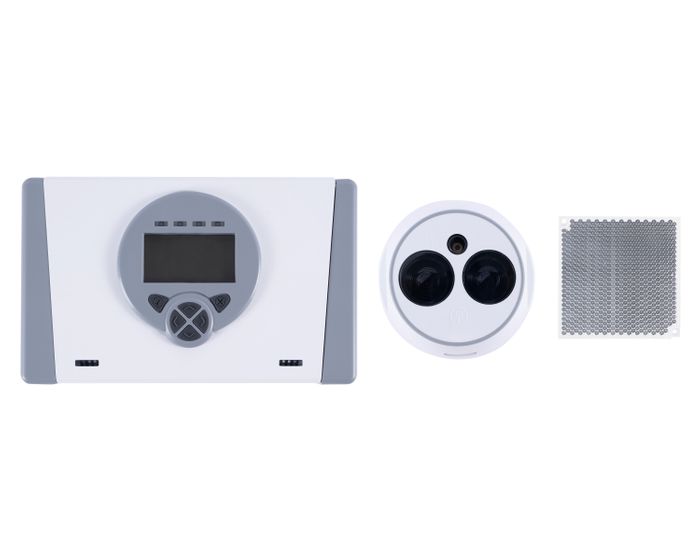

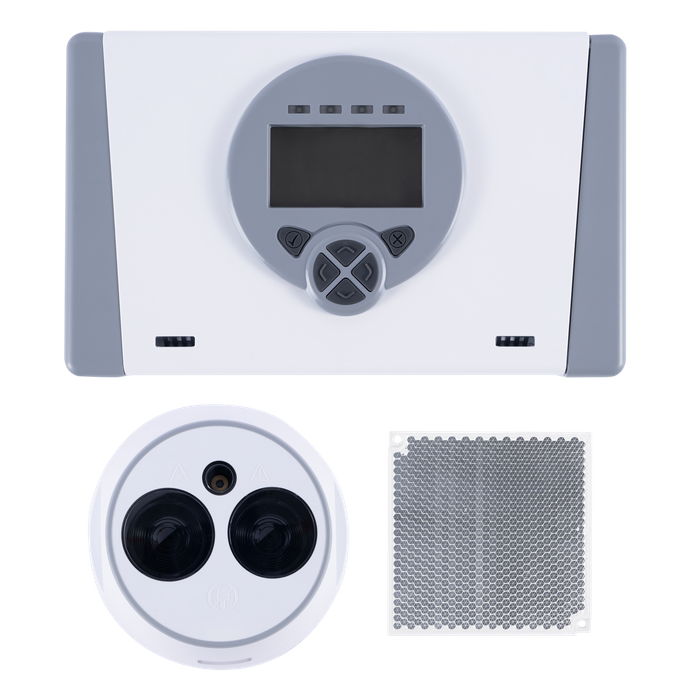

Fireray 5000 Optical Beam Smoke Detector

FFE Stand: 5/C97

The Fireray 5000 sets a standard in fire detection, integrating a transmitter/receiver and automatic alignment motor within its detector head. This design simplifies installation, requiring wiring and power on one side only, with a reflector covering the opposite side.

An outstanding feature is its automatic compensation for environmental effects on the beam signal, achieved through contamination compensation software and motorised realignment.

Installation is further enhanced with first-fix systems for the detector and controller, complemented by a visible laser aiding alignment. This allows for quick setup by a single engineer, reducing costs.

Customisation options include adjusting alarm thresholds and delay from the ground-level system controller. The low-level controller features an LCD display with an icon-based, user-friendly interface.

Key features encompass accommodating two detectors per controller, configurable range from 8m to 100m, separate fire and fault relays, integral laser alignment, contamination compensation, and event logging. Additionally, the system supports programmable sensitivity and fire thresholds, with cable gland knockouts and a 2-wire interface.



Categories

  • Fire Detection
  • Fire Prevention
