Fireray 3000 Ex d End-to-End Beam Smoke Detector
)
)
)
Fireray 3000 Ex d is an explosion-proof end-to-end optical beam smoke detection system designed for large enclosures where a potentially explosive atmosphere may be present, providing early warning of smoke-generative fires.

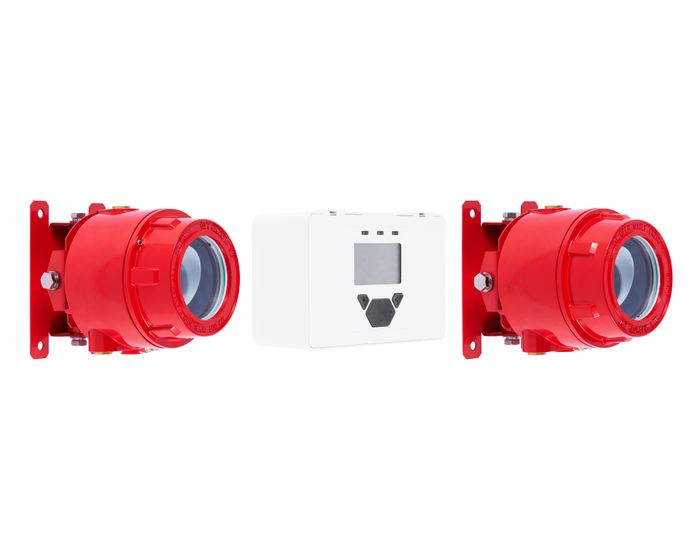

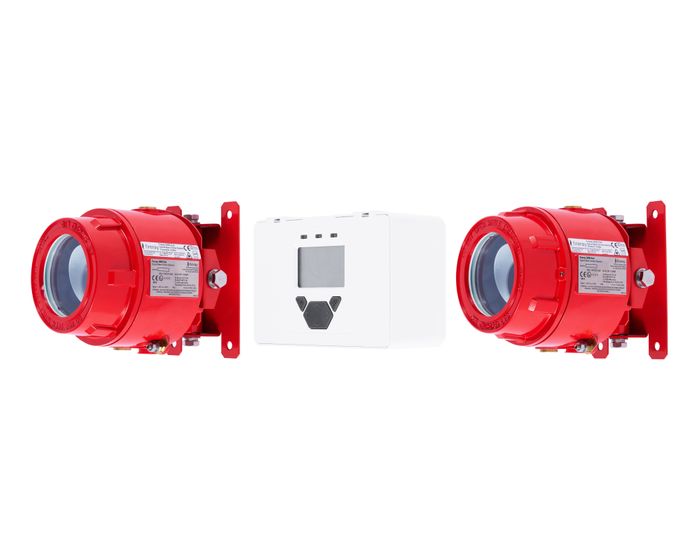

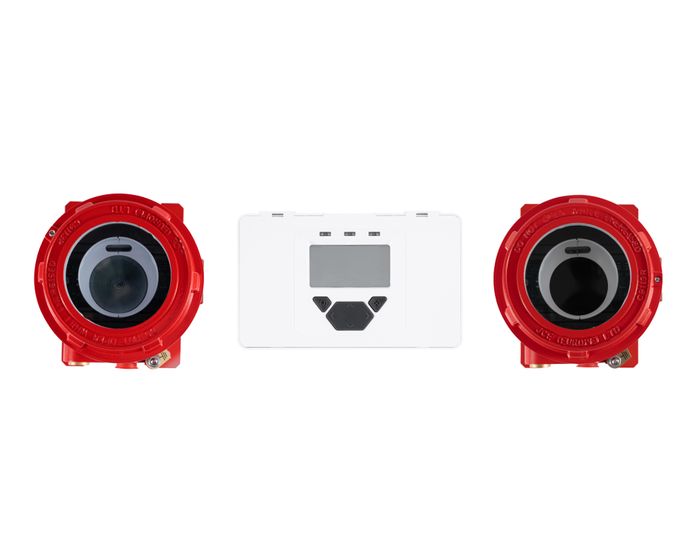

The system consists of a separate infrared transmitter and receiver certified for hazardous areas, supported by a remote/low-level controller with LCD mounted in a safe (non-hazardous) area. This allows engineers to carry out setup, testing, sensitivity adjustments and fire/fault diagnosis without routine high-level access.
Key features
- ATEX & IECEx certified for hazardous zones (incl. Zones 1, 2, 21, 22)
- End-to-end detection (Tx/Rx) with defined detection path
- Range 10–80m (configuration dependent
- Low-level LCD controller (safe area) for commissioning, testing and diagnostics
- Light Cancellation Technology™ to reduce false alarms from strong lighting
- Dynamic beam phasing to support challenging layouts and reduce cross-talk between systems
Typical applications
Oil & gas and petrochemical environments, refineries, chemical processing, and other large hazardous-area enclosures where robust, explosion-safe smoke detection is required.
