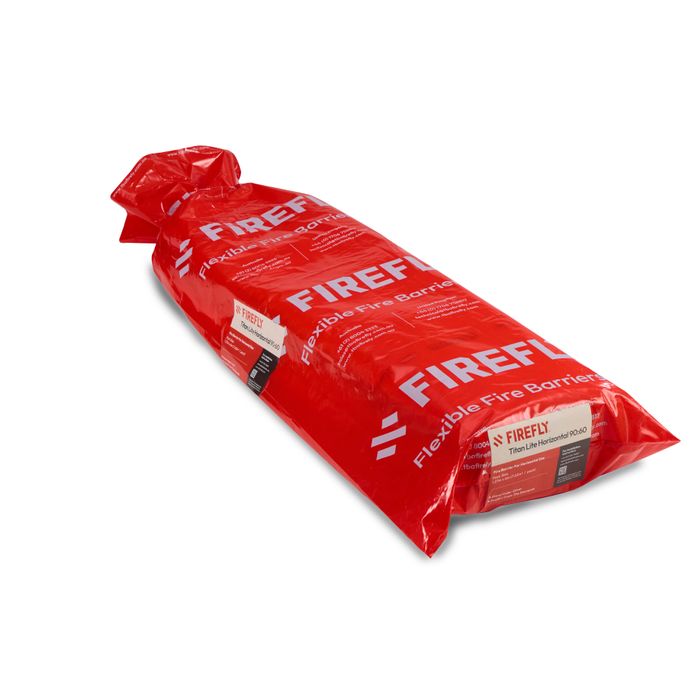

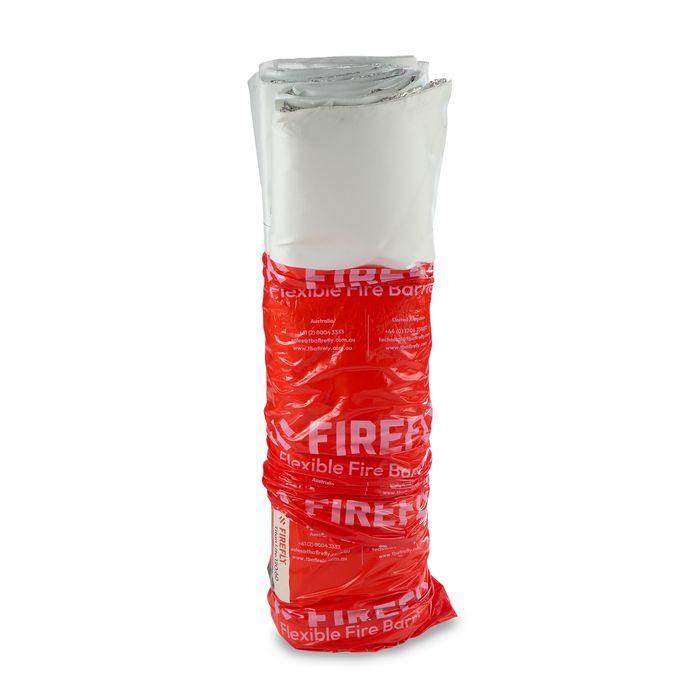

FIREFLY® Titan Lite Horizontal 90:60
)
)
)
USE AREAS
Used primarily in roof voids and lofts to achieve fire-rated compartmentation lines throughout a building.
Extensively used in social housing, care homes and
healthcare, separating accommodation and living spaces.
Also used in larger areas within industrial, warehousing, food processing, data centres and offices to create required compartmentation zones.
CONSTRUCTION

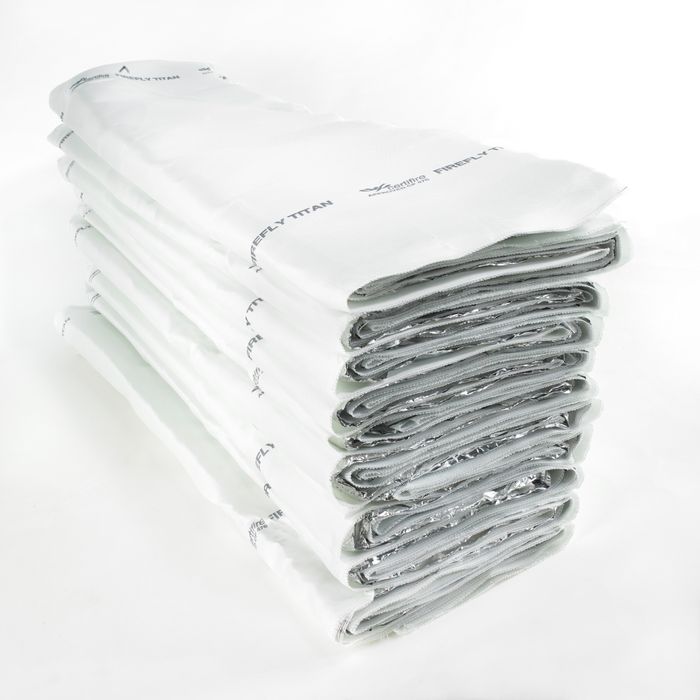

FIREFLY® Titan Lite Horizontal 90:60 is manufactured using layers of aluminium, woven and nonwoven glass fibre, specially treated with a proprietary coated to greatly increase fire resistance. Product is supplied to be installed as a 3-layer system.
More...
KEY BENEFITS
FIREFLY® Titan Lite Horizontal 90:60 provides a combined 90 minutes Integrity and 60 minutes Insulation
Maintains fire-rated compartmentation lines through roof voids and difficult to access areas where flexibility is an advantage
A 3-layer installation system to achieve the highest levels of performance within the FIREFLY® range
Lightweight, flexible, easy to handle and cut
Installer-friendly fire barrier system
Fully tested to BS476 and independently certified by IFCC/Kiwa
FIREFLY® Titan Lite Horizontal 90:60 is supported by a full range of FIREFLY® ancillary products (stainless steel staples, sealants, fixing, supports) to provide the ability to install a fully tested system
TITLE
FIREFLY® Titan Lite Horizontal 90:60
DESCRIPTION
Lightweight flexible fire barrier – combined Integrity and Insulation
CERTIFICATION
Third party certified by IFCC/Kiwa. Certificate number: IFCC 1463
APPLICATION
Horizontal use only (see Titan Lite 120:60 for alternative) – 3-layer staggered system
PROPERTIES
Description: Non-toxic, user-friendly, flexible, durable. Easy to manipulate and shape
Coating: Chemical treatment to optimise thermal properties and help prevent fibre migration
Min Thickness: 18mm
)
)
)
)
)
)
