FIREFLY® Fire Collars
)
)
USE AREAS
FIREFLY® Fire Collar (FCR)’s primary purpose is to protect combustible pipes and maintain fire resistance as part of a tested and approved passive fire protection system. Available in 6 sizes 50mm to 160mm.
- Retro fit in conjunction with our flexible fire barriers, FB180 Wall and Floor Batt Systems
- PVCu pipes
- PP pipes
- PE-X pipes
- HDPE/LDPE pipes
- Air conditioning pipes
- Insulated copper / metal pipes (Elastomeric, Phenolic,
Glasswool, Nitrile, PE) - ABS
- Concrete and masonry walls and floors
- Double layer flexible fire rated partition walls
KEY BENEFITS
- Provides fire resistance up to 4 hours
- Tested to BS EN 1366-3:2021 fire resistance penetration seals
- Retro fit in conjunction with our flexible fire barriers, FB180 Wall and Floor Batt Systems
- Easy to install
- High end, fast expanding graphite material
- Supported by a full range of FIREFLY® ancillary products (intumescent acrylic, high expansion graphite, pigtail screws and fixings) to provide the ability to install a fully tested system.
TITLE
FIREFLY® Fire Collar (FCR)
TESTING
BS EN 1366-3:2021
FIRE RATING
Upto 4 hours
APPLICATION
- Retro fit in conjunction with our flexible fire barriers, FB180 Wall and Floor Batt Systems, up to 160mm
- Should be used where a combustible pipe penetrates a fire rated wall or floor
- Please refer to installation drawings on our website

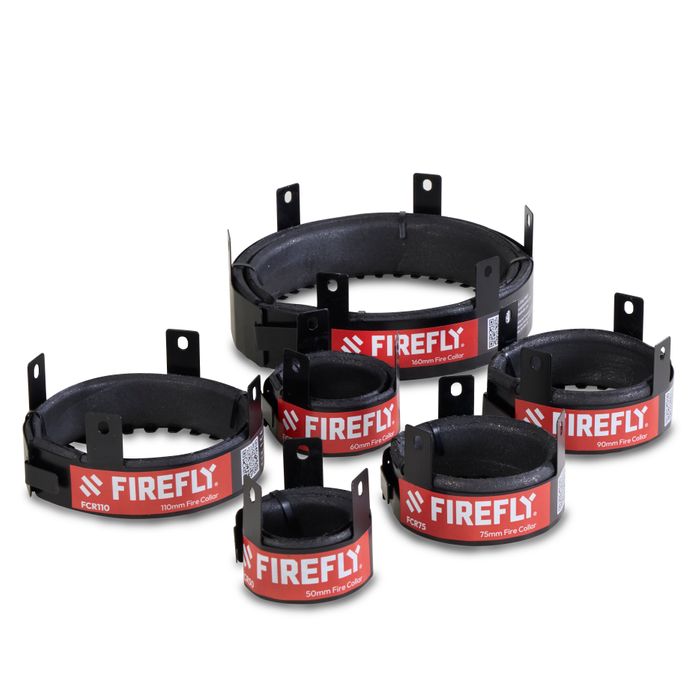

SIZES
50mm, 60mm, 75mm 90mm, 110mm, 160mm
)
)
)
)
)
)
