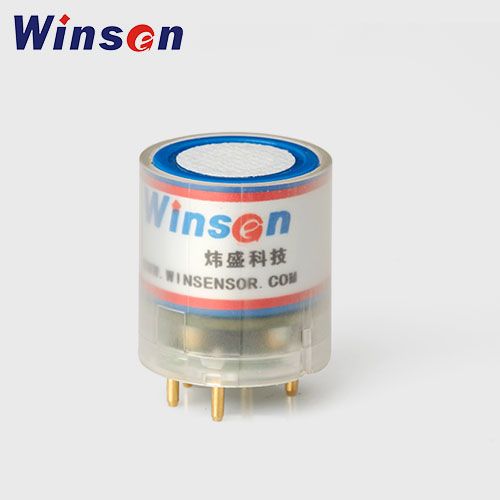

Electrochemical Detection Module ZE03G

Zhengzhou Winsen Electronics Technology Stand: 4/C57

Application

Portable and fixed gas detector, various gas detection equipment and occasion.

Features

  • High sensitivity & resolution
  • Low power consumption
  • UART and analog voltage output
  • Good stability and excellent anti-interference ability

Specifications

Model No.ZE03
Target GasCO, H2S, NH3, CL2, SO2, NO2, O2, etc
Measurement RangeRefer to table 2.
Working VoltageDC5±0.1V
Working Current<5 mA
Output DataUART Output (TTL electrical level,3V)
Analog Voltage (refer to table2. for sensor original amplifying signal)
Working Life2 years
Operating EnvironmentTemp.:-20~50℃
Humidity.:15%-90%RH (no condensation)
Storage EnvironmentTemp.: 0~20℃
Hum.:15%RH-90%RH
Sizeø23.5mm*24.5mm

* The description and specifications might be changed without notice. Please contact us for the latest information before placing orders.
