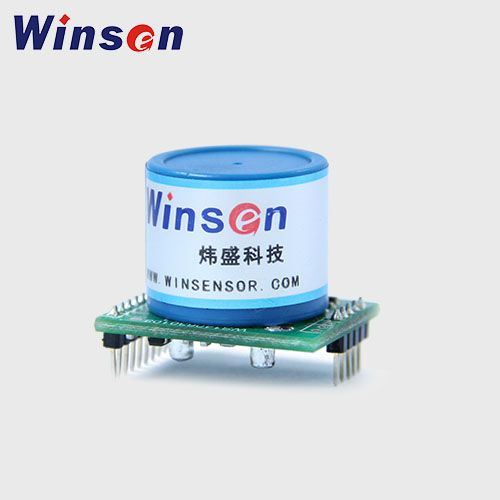

Electrochemical CO Sensor Module ZE07-CO

Zhengzhou Winsen Electronics Technology Stand: 4/C57

Application

  • CO gas safety monitoring
  • Air ventilation system,
  • Kitchen, indoor garage, portable detector, etc

Features

  • High sensitivity & resolution& Stability
  • Extremely low power consumption
  • Provide UART/Analog Voltage output
  • Excellent ability of Anti-interference
  • Provide Temperature compensation
  • Excellent Linear output

Specifications

Model No.ZE07-CO
Target GasCO gas
Interference GasAlcohol and other gases
Output DataDAC (0.4~2V standard voltage output correspondingto 0~full scale)
UART Output (3V-TTL Electrical Level)
Working Voltage5V~12V (No voltage reverse connect protection)
Warm Up Time≤3 minutes
Response Time≤60s
Resume Time≤60s
Detection range0~500ppm
Resolution0.1ppm
Operating Temperature-10°C~55°C
Operating Humidity15%RH~90%RH (No condensation)
Storage Temperature-10°C~55°C
Working Life3-5 years (in air)

* The description and specifications might be changed without notice. Please contact us for the latest information before placing orders.
