Adexon-HFC120E
)
)
)
)
The Adexon-HFC120E Horizontal active fire curtain offers a fire protection solution to stopping the spread of fire between floors. Designed to limit and control the spread of fire for 120 minutes at over 1000°C. It achieves the rating of 120 minutes integrity (RE). The system is tested and certifed to ISO/DIS 21524-1:2019.

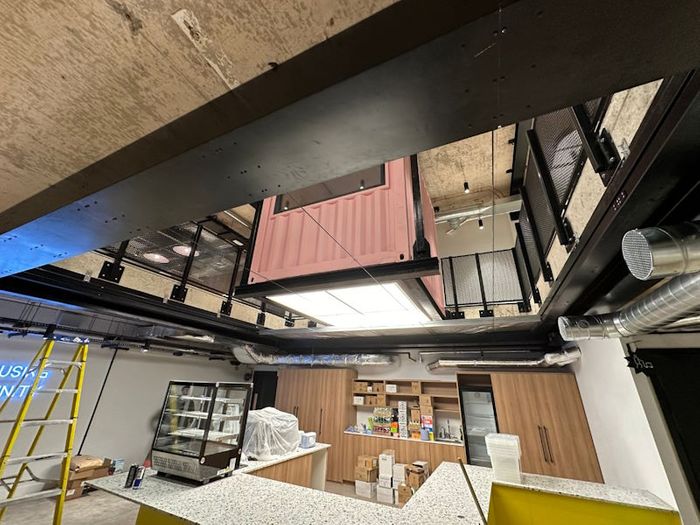

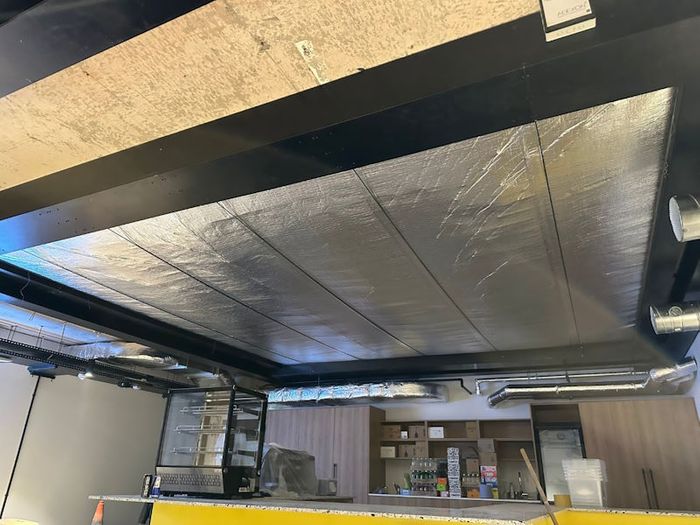

The Horizontal curtain features no visible supports, allowing for completely unobstructed atria and stairwells. This lets light flow and increases ventilation options in open plan spaces without extra structural supports. Operation is via two 24V DC tubular motors (one motor to open, and one motor to close), controlled by an electronic control board and 2 small motor controller units.
Our standard lead time is 10 – 12 weeks from approval of drawings. Optional extras such as Emergency Retract Buttons and Obstruction Warning are available upon request.
The Adexon-HFC120E is suited to many different applications; some of the most common are:
- Stairwells
- Atrium spaces
- Lightwells
