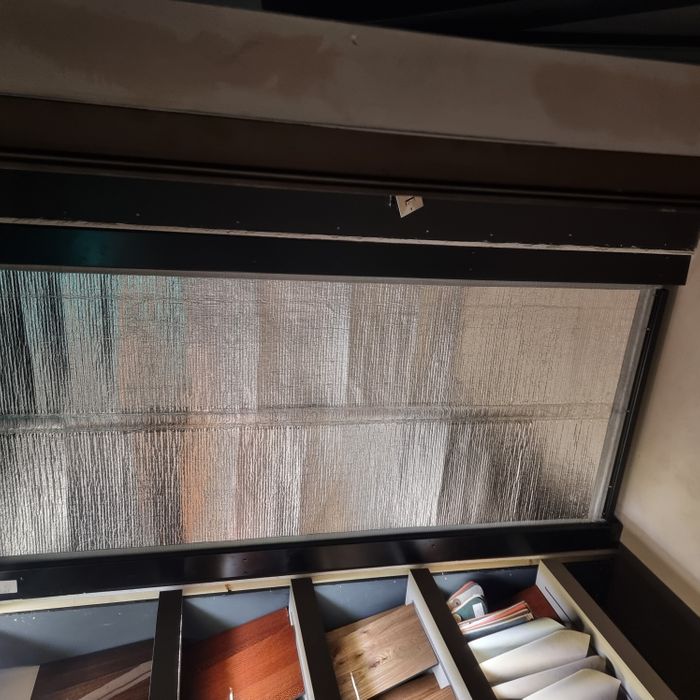

The Adexon-FC60EW is our multi-purpose fire curtain offering integrity (E) and radiation (W) performance. Designed to limit and control the spread of fire for up to 60 minutes at over 1000°C, and also reduces the radiation of heat from one side of the curtain to the other for up to 60 minutes. Smoke sealing is also available to limit and control the spread of smoke created by a fire. The system is tested and certifed to BS EN 16034:2014, with smoke control tested to BS EN 1634-3:2004.

Operation is via 24V DC tubular motors controlled by an electronic control board. It has gravity fail-safe to ensure that the system will deploy to its fire-operational position so that you have protection irrespective of whether power is maintained or not.

Our standard lead time is between 6 to 10 weeks from approval of drawings. Optional extras such as Emergency Retract Buttons and Obstruction Warning are available upon request.

The Adexon-FC60EW is suited to many different applications; some of the most common are:

• Compartmentalising spaces
• Providing boundary protection
• Protecting atrium and other openings in ceilings and floors
• Covering doorways
• Covering serving hatches
• Covering non-fire-rated glass doors and glazing
• Covering commercial shop fronts
• Replacing fire-rated non-load bearing walls (e.g. plasterboard)
• Protecting escape routes
