The Adexon-CSC60DH is our concertina smoke curtain that achieves 60 minutes of smoke control at temperatures of up to 1000°C. This achievement is courtesy of the design of the proprietary fabric. The system is tested and certifed to EN 12101-1:2005; EN 12101-1:2005/A1:2006.

Operation is via several 24V DC tubular motors controlled by an electronic control board and motor controller units. The uninterrupted power supply is backed up by batteries to last up to 1 hour, which can be increased to 6 hours on request. The system is available in sizes to suit almost all site requirements. It has gravity fail-safe to ensure that the system will deploy to its fire-operational position so that you have protection irrespective of whether power is maintained or not.

Our standard lead time is between 8 to 10 weeks from approval of drawings. Optional extras such as Emergency Retract Buttons are available upon request.

The Adexon-CSC60DH is suited to many different applications; some of the most common are:

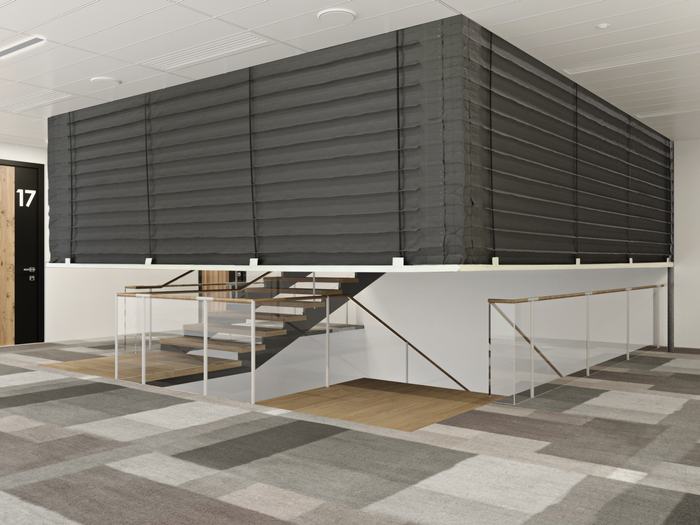

• Enclose feature staircases
• Surround stair lobbies
• Atrium spaces
• Provide boundary protection in corner windows
• Encapsulate free-standing cafes, bars & kitchen areas
