The Adexon-CFC120E is our concertina fire curtain that offers a fire integrity protection solution for open-plan layouts. Designed to limit and control the spread of fire for 120 minutes at over 1000°C. It achieves the product fire rating of 120 minutes integrity (E). The system is tested and third party certifed to BS EN 16034:2014.

Operation is via several 24V DC tubular motors controlled by an electronic control board and motor controller units. The uninterrupted power supply is backed up by batteries to last up to 1 hour, which can be increased to 6 hours on request. The system is available in sizes to suit almost all site requirements. It has gravity fail-safe to ensure that the system will deploy to its fire-operational position so that you have protection irrespective of whether power is maintained or not.

Our standard lead time is between 8 to 10 weeks from approval of drawings. Optional extras such as Emergency Retract Buttons are available upon request.

The Adexon-CFC120E is suited to many different applications; some of the most common are:

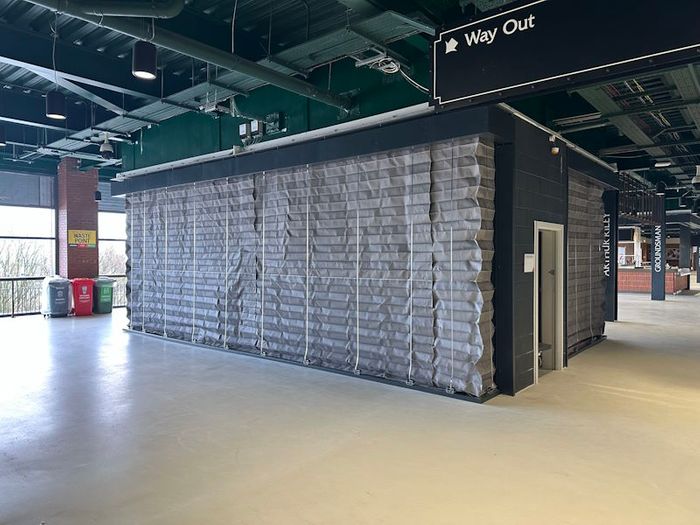

• Enclose feature staircases
• Surround stair lobbies
• Atrium spaces
• Provide boundary protection in corner windows

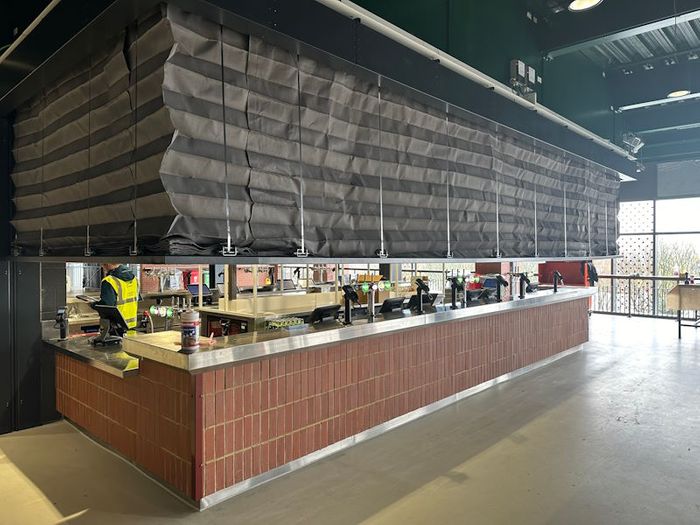

• Encapsulate free-standing cafes, bars & kitchen areas
